import pandas as pd
import seaborn as sns
import matplotlib.pyplot as pltIntro to EDA, filled
Exploratory data analysis, or EDA, is a standard practice prior to any data manipulation and analysis.
Recall that data engineering is primarily about data preparation to serve smooth and effective data analysis. Exploratory data analysis generally refers to the step of understanding the data:
- summarizing characteristics of raw data
- visualizing data (single and multiple variables)
- identifying missing data
- identifying outliers
This document primarily deals with the first two items.
Goals
In the exploratory phase, these are for people behind the scenes to see.
The main goals here are:
- capture main message
- (relatively) quick exploration across many summaries (including plots)
- not intended for a client or presentation
What does this translate to, technically?
- each summary should have meaningful information
- label your plots
Data summary
As a starting point, simply looking at the data is worth the while. Some common questions to consider are the following:
- General dataset info: size, dtypes
- Missing values?
- Duplicate data?
- Continuous variables
- Categorical variables
- Bivariate relationships
- Potential data quality issues, e.g., inconsistency, special NA characters
 |
|---|
| The origin of sns. |
Earthquake dataset
# load and save a copy of the earthquake dataset
earthquake = pd.read_csv('https://raw.githubusercontent.com/mosesyhc/de300-2026wi/refs/heads/main/datasets/Canadian-Earthquakes-2010-2019.csv')# take a glimpse of the data
earthquake.head()
earthquake.tail()| magnitude_codelist | magnitude | magnitude_type | date | place | depth | latitude | longitude | OBJECTID | longitude_geom | latitude_geom | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44556 | <2 | 1.8 | ML | 2019-12-31T18:37:24+0000 | 31 km SE of Ashcroft, BC | 14.0 | 50.487999 | -121.035004 | 44557 | -121.035415 | 50.487806 |
| 44557 | 2 | 2.4 | MN | 2019-12-31T22:18:53+0000 | Blast, Laronde Mine, QC | 0.0 | 48.250000 | -78.448997 | 44558 | -78.449004 | 48.250409 |
| 44558 | 2 | 2.0 | ML | 2019-12-31T23:11:07+0000 | 29 km SE of Ashcroft, BC | 10.5 | 50.526001 | -121.005997 | 44559 | -121.006115 | 50.526206 |
| 44559 | <2 | 1.9 | MN | 2019-12-31T23:53:23+0000 | 6 km N from Cornwall, ON | 18.0 | 45.083000 | -74.718002 | 44560 | -74.718302 | 45.083409 |
| 44560 | <2 | 1.3 | MN | 2019-12-31T23:54:02+0000 | CHARLEVOIX SEISMIC ZONE, QC. | 3.8 | 47.492001 | -70.412003 | 44561 | -70.412401 | 47.491910 |
# view a summary of the full data
earthquake.info()<class 'pandas.core.frame.DataFrame'>
RangeIndex: 44561 entries, 0 to 44560
Data columns (total 11 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 magnitude_codelist 44561 non-null object
1 magnitude 44561 non-null float64
2 magnitude_type 44462 non-null object
3 date 44561 non-null object
4 place 44561 non-null object
5 depth 44561 non-null float64
6 latitude 44561 non-null float64
7 longitude 44561 non-null float64
8 OBJECTID 44561 non-null int64
9 longitude_geom 44561 non-null float64
10 latitude_geom 44561 non-null float64
dtypes: float64(6), int64(1), object(4)
memory usage: 3.7+ MB# checks for duplicates (also ask if duplicates make sense)
earthquake.duplicated().any()False# duplicates
earthquake[earthquake.duplicated()]# a quick numerical summary
earthquake.describe()| magnitude | depth | latitude | longitude | OBJECTID | longitude_geom | latitude_geom | |
|---|---|---|---|---|---|---|---|
| count | 44561.000000 | 44561.000000 | 44561.000000 | 44561.000000 | 44561.000000 | 44561.000000 | 44561.000000 |
| mean | 2.134070 | 12.852194 | 53.351863 | -118.953322 | 22281.000000 | -118.953299 | 53.351830 |
| std | 0.828096 | 9.963145 | 6.214464 | 23.696484 | 12863.797009 | 23.696493 | 6.214465 |
| min | -1.400000 | -0.500000 | 40.808998 | -148.811005 | 1.000000 | -148.810526 | 40.808509 |
| 25% | 1.600000 | 5.000000 | 49.169998 | -132.427994 | 11141.000000 | -132.427618 | 49.170009 |
| 50% | 2.100000 | 10.000000 | 52.137001 | -129.671997 | 22281.000000 | -129.672016 | 52.136507 |
| 75% | 2.700000 | 18.000000 | 56.514999 | -121.947998 | 33421.000000 | -121.948318 | 56.515206 |
| max | 7.700000 | 214.000000 | 82.608002 | -39.320000 | 44561.000000 | -39.319968 | 82.607812 |
# checks for possible statistical assumption(s)
import scipy.stats as sps# extract only numeric variables
earthquake_num = earthquake.select_dtypes('number')earthquake_num.info()<class 'pandas.core.frame.DataFrame'>
RangeIndex: 44561 entries, 0 to 44560
Data columns (total 7 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 magnitude 44561 non-null float64
1 depth 44561 non-null float64
2 latitude 44561 non-null float64
3 longitude 44561 non-null float64
4 OBJECTID 44561 non-null int64
5 longitude_geom 44561 non-null float64
6 latitude_geom 44561 non-null float64
dtypes: float64(6), int64(1)
memory usage: 2.4 MB# for example, normality test
sps.normaltest(earthquake_num)NormaltestResult(statistic=array([ 1597.66581247, 15302.56967363, 9387.86913782, 8551.48250207,
39401.07756051, 8551.48413702, 9387.85609679]), pvalue=array([0., 0., 0., 0., 0., 0., 0.]))# for example, another normality test
sps.shapiro(earthquake_num.iloc[:, 1])# pairwise correlation
earthquake_num.corr()| magnitude | depth | latitude | longitude | OBJECTID | longitude_geom | latitude_geom | |
|---|---|---|---|---|---|---|---|
| magnitude | 1.000000 | -0.127958 | 0.196699 | -0.110731 | -0.006523 | -0.110731 | 0.196699 |
| depth | -0.127958 | 1.000000 | -0.107744 | -0.005796 | -0.103983 | -0.005796 | -0.107744 |
| latitude | 0.196699 | -0.107744 | 1.000000 | -0.266265 | -0.000391 | -0.266265 | 1.000000 |
| longitude | -0.110731 | -0.005796 | -0.266265 | 1.000000 | 0.049094 | 1.000000 | -0.266265 |
| OBJECTID | -0.006523 | -0.103983 | -0.000391 | 0.049094 | 1.000000 | 0.049093 | -0.000390 |
| longitude_geom | -0.110731 | -0.005796 | -0.266265 | 1.000000 | 0.049093 | 1.000000 | -0.266265 |
| latitude_geom | 0.196699 | -0.107744 | 1.000000 | -0.266265 | -0.000390 | -0.266265 | 1.000000 |
Data visualization
sns.set(context='talk', style='ticks') # simply for aesthetics
sns.set_palette('magma')
%matplotlib inline
earthquake = earthquake.sample(n=500) # (if too slow) for illustration purposes# histogram for continuous variables using pandas built-in plots

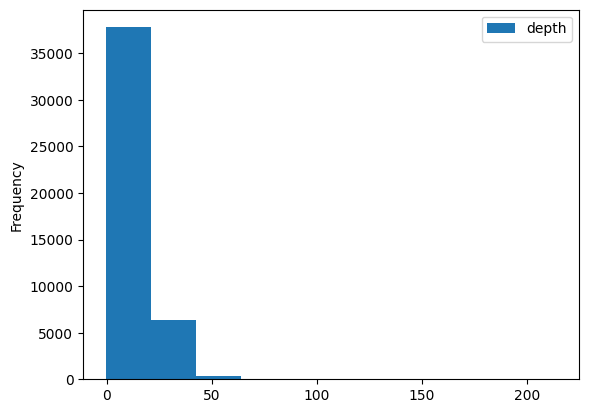

earthquake.plot.hist(column='depth')

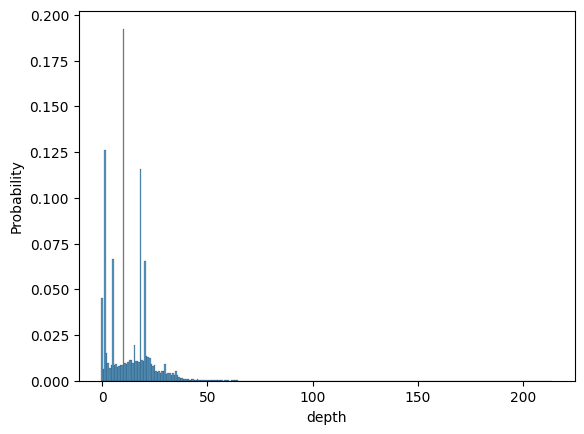

# relative frequency? ...
sns.histplot(x='depth', data=earthquake, stat='probability')

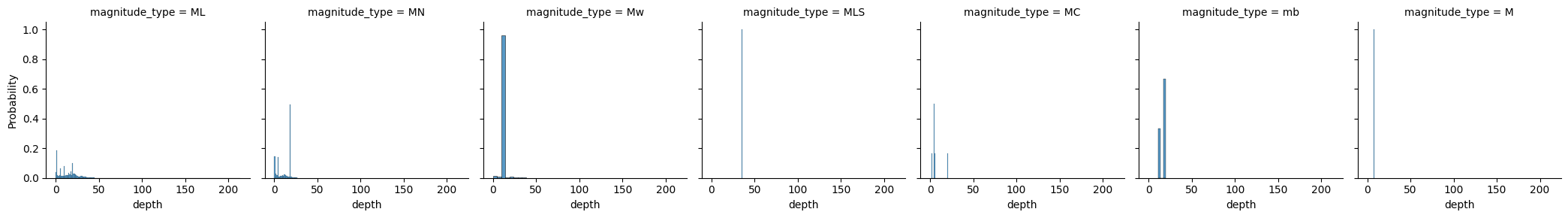

# histogram of masses by group
earthquake.info()
g = sns.FacetGrid(earthquake, col='magnitude_type')
g.map(sns.histplot, 'depth', stat='probability')<class 'pandas.core.frame.DataFrame'>
RangeIndex: 44561 entries, 0 to 44560
Data columns (total 11 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 magnitude_codelist 44561 non-null object
1 magnitude 44561 non-null float64
2 magnitude_type 44462 non-null object
3 date 44561 non-null object
4 place 44561 non-null object
5 depth 44561 non-null float64
6 latitude 44561 non-null float64
7 longitude 44561 non-null float64
8 OBJECTID 44561 non-null int64
9 longitude_geom 44561 non-null float64
10 latitude_geom 44561 non-null float64
dtypes: float64(6), int64(1), object(4)
memory usage: 3.7+ MB

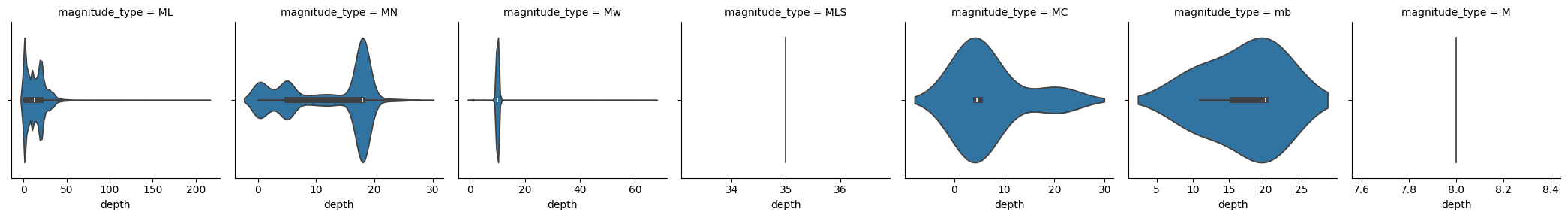

# other types of plots
g = sns.FacetGrid(earthquake, col='magnitude_type', sharex=False)
g.map(sns.violinplot, 'depth')C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\axisgrid.py:718: UserWarning: Using the violinplot function without specifying `order` is likely to produce an incorrect plot.
warnings.warn(warning)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)

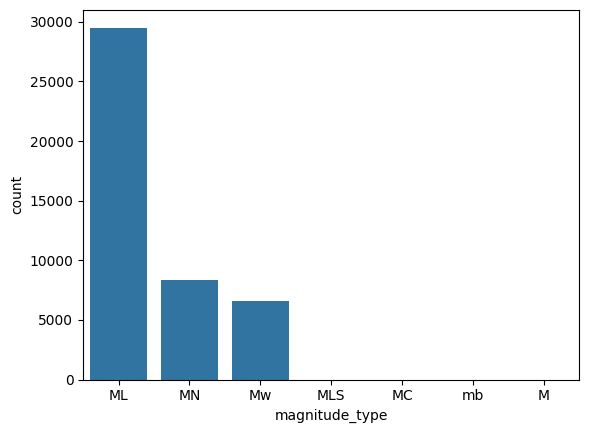

# counts for categorical variables
sns.countplot(x='magnitude_type', data=earthquake)

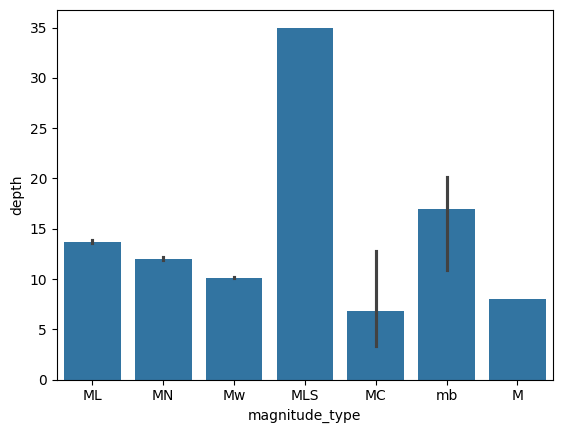

# barplots by group
sns.barplot(x='magnitude_type', y='depth', data=earthquake)

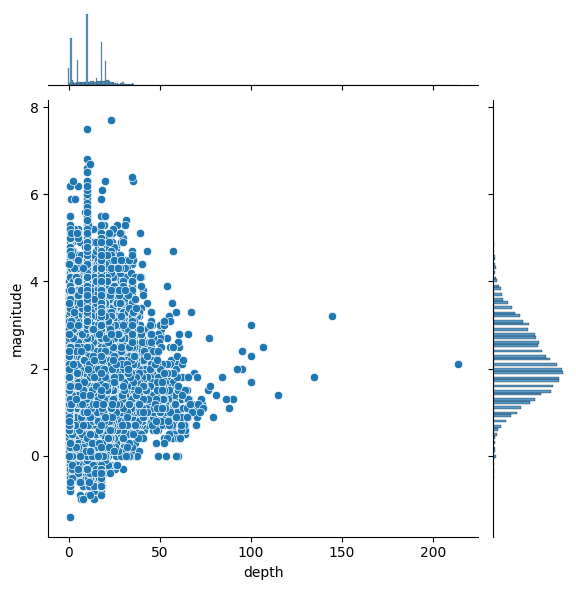

# bivariate plots
sns.jointplot(x='depth', y='magnitude', data=earthquake)

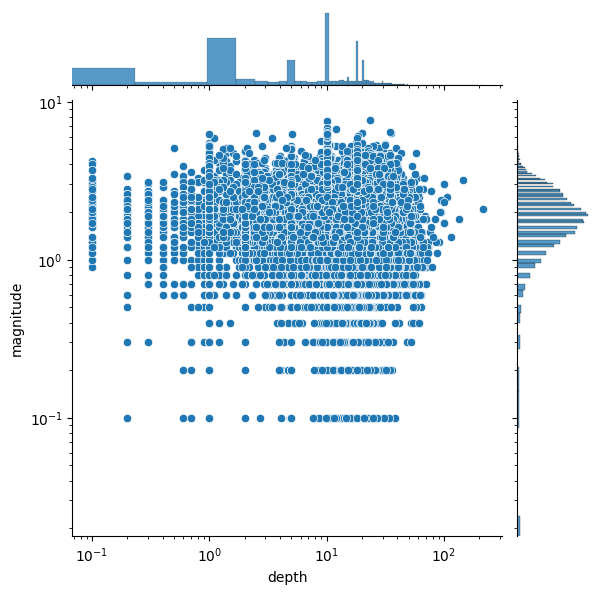

# bivariate plots (log-log)
sns.jointplot(x='depth', y='magnitude', data=earthquake)
plt.xscale('log')
plt.yscale('log')
# pairwise plots (time-consuming)
g = sns.pairplot(earthquake.sample(500))

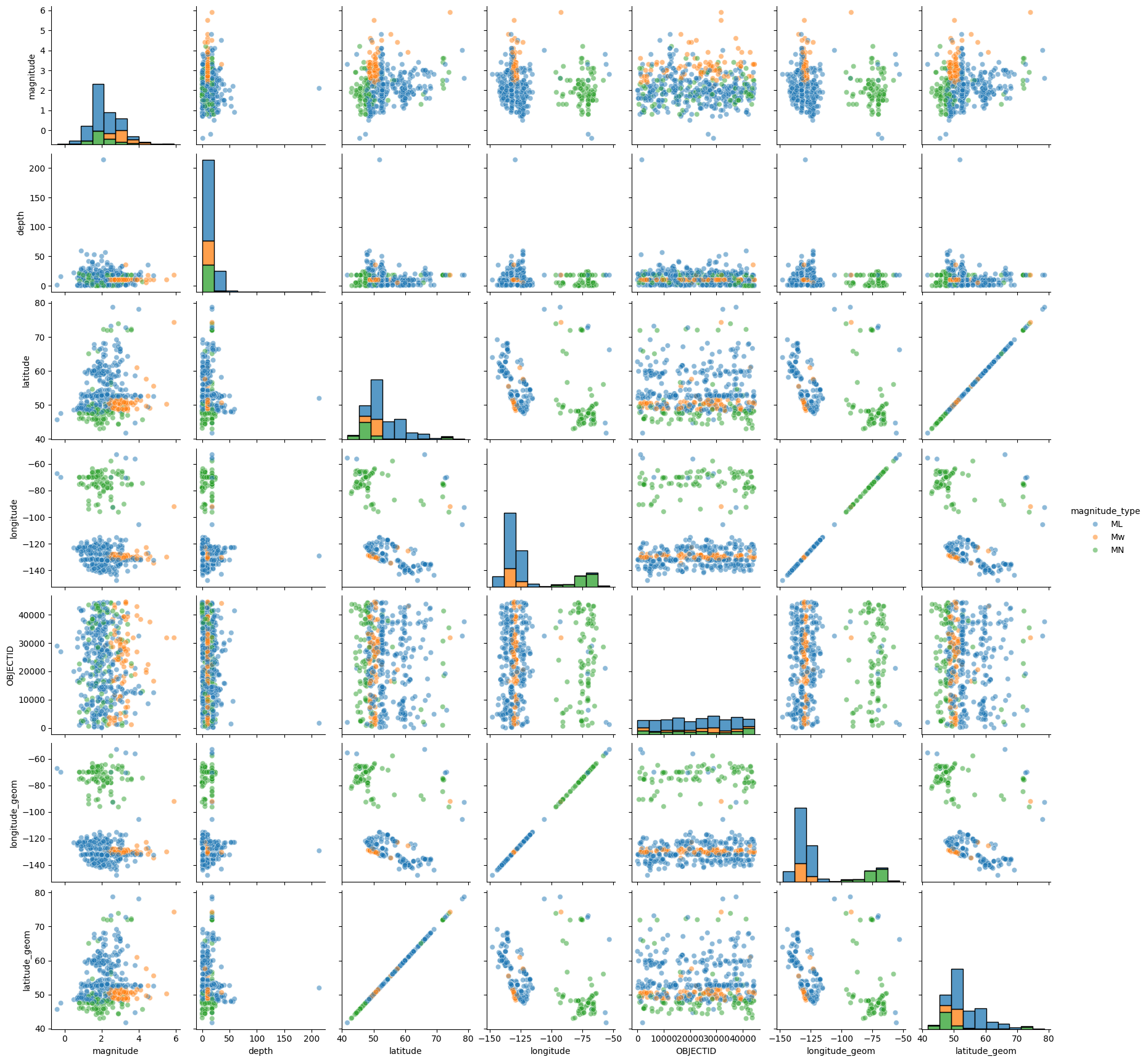

# another pairwise plot by group
g = sns.pairplot(earthquake.sample(500), hue='magnitude_type',
diag_kind='hist', diag_kws={'multiple': 'stack', 'bins': 10},
plot_kws={'alpha':0.5})C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
C:\Users\moses\AppData\Local\Programs\Python\Python312\Lib\site-packages\seaborn\_base.py:949: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
data_subset = grouped_data.get_group(pd_key)
In-class activity

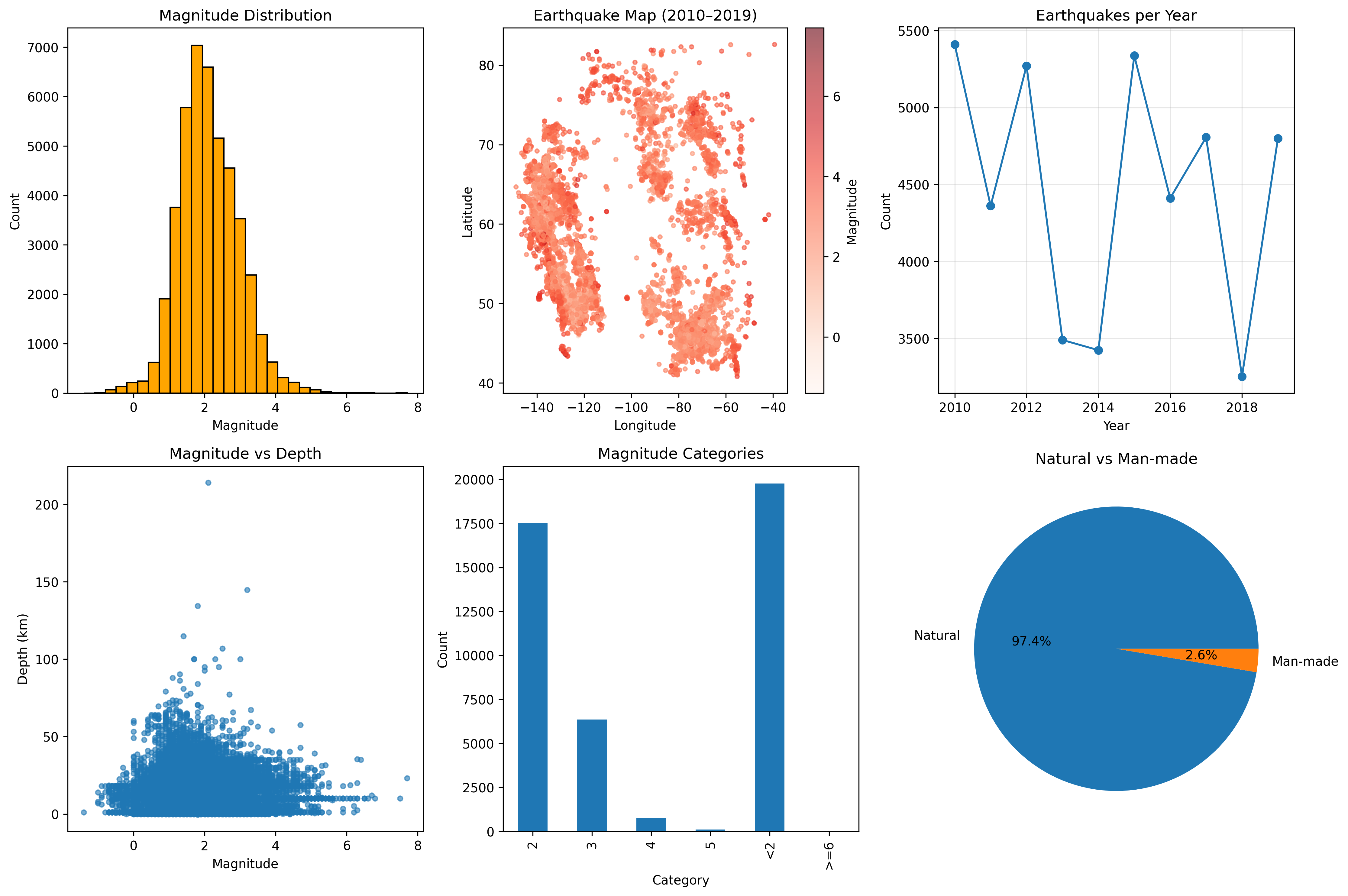

Refer to the following figure, choose two subfigures to reproduce with the earthquake dataset.
(In case you need this) Jupyter notebook setup
Visit https://docs.jupyter.org/en/latest/install/notebook-classic.html for some guidance to set up jupyter notebook.
Note: These notes are adapted from a blog post on Tom’s Blog.
